Rectangle Trampoline Mat For 10x17 Upper Bounce Trampoline

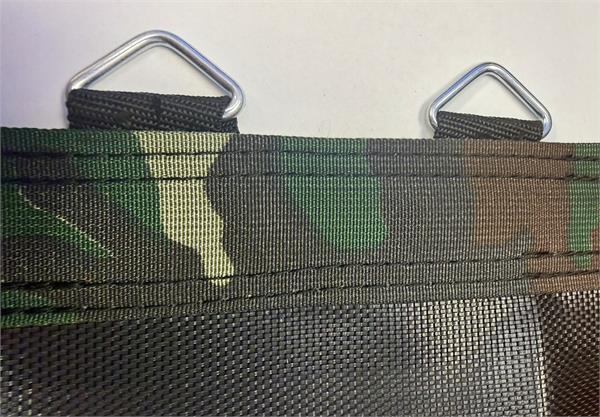

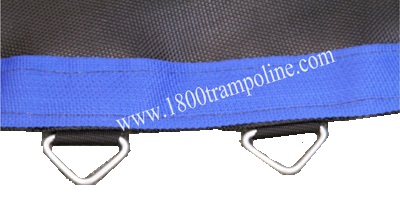

   Sunguard Color Options Blue Sunguard Camo Sunguard |
|
Our Price: Starting at $163.90
Variations
| Mat Type: |
|
| Sunguard Colors: |
|
|

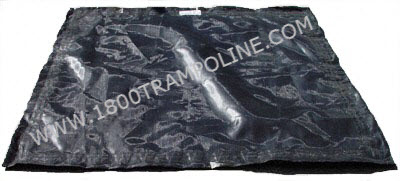

10x17 RECTANGLE MAT - Fits Upper Bounce
If you are looking for a mat and you don't see your exact size,
then check out some of the customs that we've made over the years.
We have them listed on our "Trampoline Mat" page.
This mat will also fit the UpperBounce 10X17 trampoline
USA MADE is here In Texas & IMPORT Made In China SPECS:
- Exact length of trampoline mat is 98.5" x 186"
- Total V-Rings: 108
- Spring Configuration:
- 18 Springs on Short Side
- 34 Springs on Long Side
- 4 Corner Springs - The Corner Mat has a FLAT/ANGLED Edge
- Uses 7" Springs (Not Included)
- This mat corner has a flat angled edge, with only 1 ring in the middle of flat section.
- A ring is next to the point/corner/flat edge on both the short and long side.
- Fits Models UBRTG01-1017 & UB03EC-1017E
- Grade A Polyproylene
- Hem With 4 Row of UV Treated Thread
- The Import Mat Has The Spring Tool In The Box
- The USA Made Mats have other Sunguard Color Options
- Our trampoline mats are always BLACK. HOWEVER, if there is an option for BLUE/BLACK mat material, then that is a USA MADE LIMITED EDITION and only available temporarily. It looks pretty, so get it while you can.
PLEASE MEASURE YOUR MAT CAREFULLY!
|
We recommend adding a Sunguard to your mat!
THIS WILL ONLY BE FOR THE SUNGUARD, NOT THE COMPLETE MAT!
SUNGUARD BENEFITS
- Prolongs the life of your trampoline
- Adds 2 Year Warranty on Stitching
- Colored Sunguard gives the jumper a perimeter/guideline
- Gives a safer jumping experience

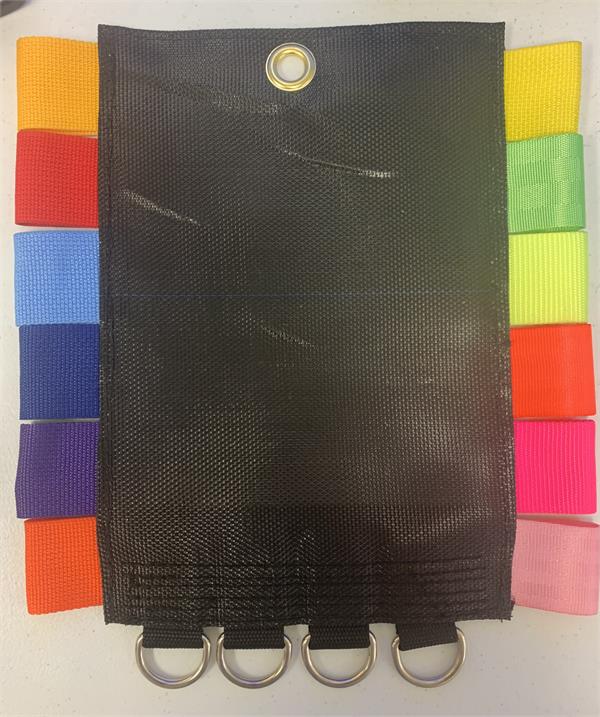

- USA Made mats come with a choice of sunguard colors
|
|
How to Measure for a Rectangle Trampoline Mat
- Measure the frame. You will measure the length and width of the frame from outside frame to outside frame. To get the most accurate measurement it is best to measure along the edge of the frame, as shown in the diagram to the right.
- Measure the springs. You will take a spring OFF the trampoline, make sure that it is fully recoiled and measure it from hook-end to hook-end. It is very important that you not use a stretched-out spring and that the spring NOT be attached to the trampoline to get an accurate measurement.
- Count the springs. You will count the springs down the long side and the short side to get your total spring count (we will need to know how many down the long and short sides). We suggest that you also count your springs to make sure that you are not missing any.
- Measure the mat. If possible, it is best to measure the mat while still attached to the frame. You will measure the mat from hem to hem down the length and width, DO NOT INCLUDE THE V-RINGS. Note the EXACT inches of the measurement.
- Hole to Hole Measurement. If you do not have your mat, you will need to measure where the spring sits on the frame to the opposite side where the spring sits on the frame. Use the diagrams to the right for a visual. Place your tape measure on the frame where the spring attaches to the frame and measure straight across to the opposite side where the spring sits on the frame.
|
|
|
Trampoline Springs Are Now Easy and Safe to Stretch/Pull
| | |
